Oil & Gas specialties Well testing, Cementing
Since the 2000sTop Industrie has developed a range of high-performance equipment dedicated to research themes for oil and gas industries. For the geotechnical and exploration phases, our equipment allows the study of the rock - fluids exchanges in the field, permeability, compressibility, fracturing, cementing...We also offer reservoir stimulation pilots, EOR, CO2 injectivity, geophysical or geochemical studies, hydrates... We can therefore help you develop your research by offering you a complete range of equipment:
- Recombination cells, with or without visualization, adapted to different means of measurement FTIR, Raman...
- Cementing, curing, UCA study unit...
- Triaxial cell for rock mechanics, equipped for acoustic emissions and stress measurements.
- Device for hydrate studies, CO2 transport and storage...
- Equipment for simulation of well conditions and tool calibration for Well Testing.
- Corrosion study devices, autoclaves and corrosion loops in Oil & Gas environment.
- Equipment for the study of the physical properties of fluids in the Oil & Gas field, E.O.R.
- Complete equipment for phase equilibrium PVT, (VLE & VLLE), Solid Liquid Equilibria (SLE), Gas solubility, asphaltenes ...
Well Testing Calibration Simulation puits
EOR Reservoir fluid Systems
Test Benches for testing and calibrating tools in well conditions
- WT measurement means, pressure, flow, temperature, US measurement sensors, fiber optic sensors...
- Motor systems, pumps and fluid circuit elements.
- Validation of embedded electronic boards.
- Well simulator
- Cementing studies
Features :
- Operating pressure: 10, 20, 30, 40 kPsi (700 to 3000bar)
- Fluid: water, oil, drilling mud ...
- Operating temperature: -20 to 250°C.
Equipment and options:
- Sealed, multi-contact electrical feedthroughs
- Coaxial electrical bushings for US measurement.
- Control unit, pressure and temperature generation.
Testing cell:
- Dimensions Ø up to 300mm, height up to 5 meters.
- Operating pressure up to 40 kPsi (2800bar)
- Temperature up to 250°C

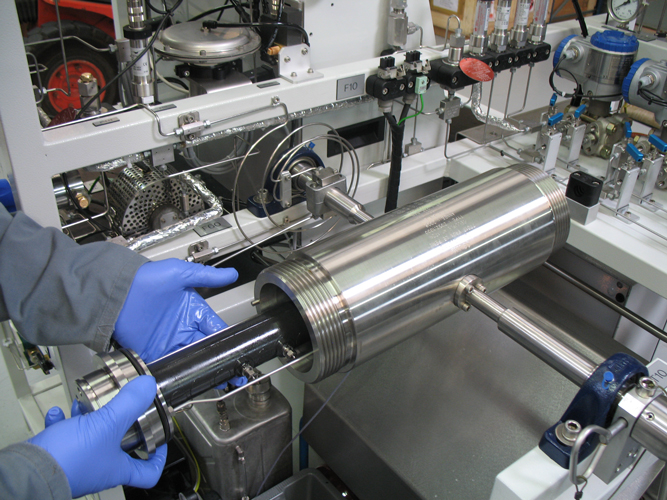

Core Flooding system, devices for studying well conditions.
This equipment allows you to control and optimize the means and quantities of production, productivity and drilling costs. They are essential to determine the permeability of the rock and how various fluids, water, oil and gas, will flow through it.
- Core flooding system
- Recombination cell
- Injectivity studies
- Compressibility study cell
- Study of the physical characteristics of proppants
- Collection and transport of samples
- Test of ˝venue de sable˝ (Thick-Walled Cylinder stress)
